Addressing the myriad demands of today’s cycling disciplines, Jovial takes the best-suited high-tech aluminum alloy for the job at hand. AL6061, AL6069, AL7005… each alloy has its own strength and resilience. Jovial has carved its niche in today’s demanding bicycle industry by creating spot-on frame and suspension systems for performance, touring and e-bike models: full suspension, hard-tail or rigid fork for road, city and trekking.
Jovial’s home and testing ground is located in Changshu, an industrial suburb of Shanghai, China’s historic bicycle capital. Here we make our frames – clustered in with the country’s best manufacturers and suppliers of bicycles and parts. Extrusions, tubes, forged components and CNC parts – all are machined on our premises or nearby. Our talented team of designers, engineers and testing staff – many of us trained in Taiwan – pit our know-how together to create and consistently improve our reliable, affordable Jovial bike frames.
27.5 AM / 4Bar
JCA7204
AL6061
Head set 1-1/8 ~1-1/2"
Seat post 30.9mm
Shock 200/57mm
Post mount 180mm
D/O 142x12mm e-thru
BSA 68/73mm
Rear Travel 160mm
- Dropper seat post compatible
- Internal cable routing
- Removeable FD mount
- DA/DM hanger compatible
27.5 + Enduro / 4Bar
JCA7203
AL6061
Head set 1 1/8 -1 1/2"
Seat post 30.9mm
Shock 200/57mm
Post mount 180mm
D/O 148x12mm e-thru
BSA 68/73mm
Rear Travel 140mm
- Dropper seat post compatible
- 29er x 2.2” Tire compatible
- Internal cable routing
29er XC / 4Bar
JCA7210
AL6061
Head set 1 1/8 -1 1/2"
Seat post 30.9mm
Shock 200/51mm
Post mount 180mm
D/O 142x12mm e-thru
BSA 68/73mm
Rear Travel 120mm
- Dropper seat post compatible
- Internal cable routing
- Removeable FD mount
- DA/DM hanger compatible
27.5 AM / VPP
JCA7209
AL6061
Head set 1 1/8 -1 1/2"
Seat post 30.9mm
Shock 216/63mm
Post mount 180mm
D/O 142x12mm e-thru
BSA 68/73mm
Rear Travel 160mm
- Dropper seat post compatible
- Internal cable routing
- Removeable FD mount
27.5 AM / 4 Bar Bosch CX
JCA7202
AL6061
Head set 1 1/8 -1 1/2"
Seat post 30.9mm
Shock 216/63mm
Post mount 180mm
D/O 142x12mm e-thru
Rear Travel 140/160mm
- Dropper seat post compatible
- Internal cable routing
- Travel switch 140/160mm

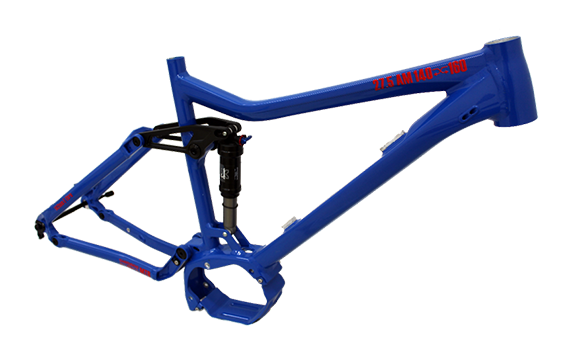

27.5 AM / 4Bar Shinano E 8000
JCA7201
AL6061
Head set 1 1/8 -1 1/2"
Seat post 30.9mm
Shock 216/63mm
Post mount 180mm
D/O 142x12mm e-thru
Rear Travel 140/160mm
- Dropper seat post compatible
- Internal cable routing
- Travel switch 140/160mm

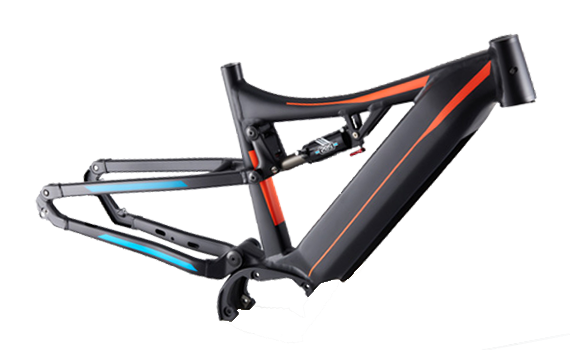

27.5 Enduro / Faux Bar Shimano E 8000
JCE8000-0
AL6061
Head set 1 1/8 -1 1/2"
Seat post 31.6mm
Shock 200/57mm
Post mount 160mm
D/O 148x12mm e-thru
Rear Travel 140mm
- Dropper seat post compatible
- Internal cable routing

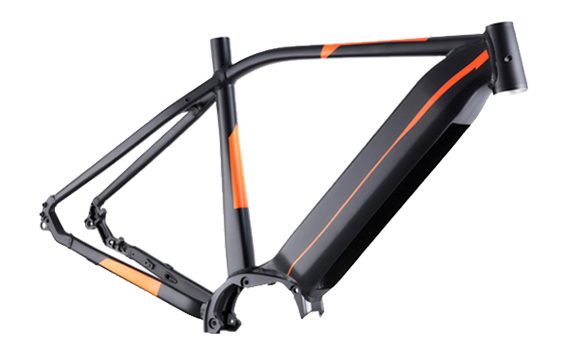

28” Shimano E 8000
JCE0019-0
AL6061
Head set 1 1/8 -1 1/2"
Seat post 31.6mm
Post mount 160mm
D/O 142x12mm e-thru
- Dropper seat post compatible
- Internal cable routing

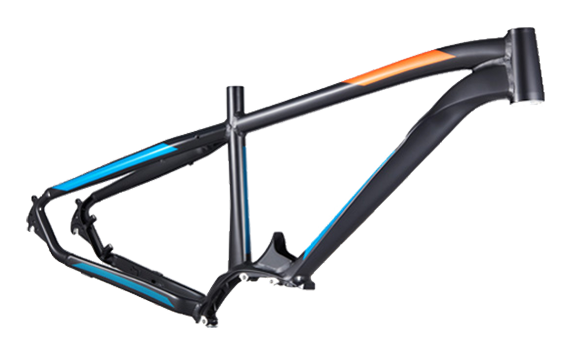

29 XC Bosch CX
JCP008
AL6061
Head set 1 1/8 -1 1/2"
Seat post 30.9mm
Post mount 160mm
D/O 135mm QR

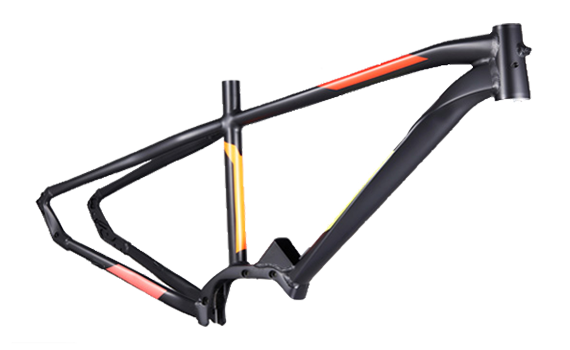

28” Shimano E 6000
JCE0017-0
AL6061
Head set 1 1/8 -1 1/2"
Seat post 30.9mm
Post mount 160mm
D/O 135mm QR
28" Shimano E6000
JCP0018-0
AL6061
Head set 1 1/8 -1 1/2"
Seat post 30.9mm
Post mount 160mm
D/O 135mm QR
28" Bafang
JCE0016
AL6061
Head set 1-1/8"
Seat post 30.9mm
Post mount 160mm
D/O 135mm QR
700C Trekking
JRF027
One piece integrate fork
AL 6061
Steer CrMo/7050
CROWN Ø56mm
Offset 45mm
650B MTB
JRF008
AL 6061
Steer CrMo/7050
CROWN Ø56mm
Offset 50mm
700C Trekking
SJC160027-0
AL 6061
Steer CrMo/7050
CROWN Ø50mm
Offset 50mm
700C Trekking
JRF017
AL 6061
Steer CrMo/7050
CROWN Ø50mm
Offset 45mm
28" City
JRF006
AL 6061
Steer CrMo/7050
CROWN Ø50mm
Offset 45mm
